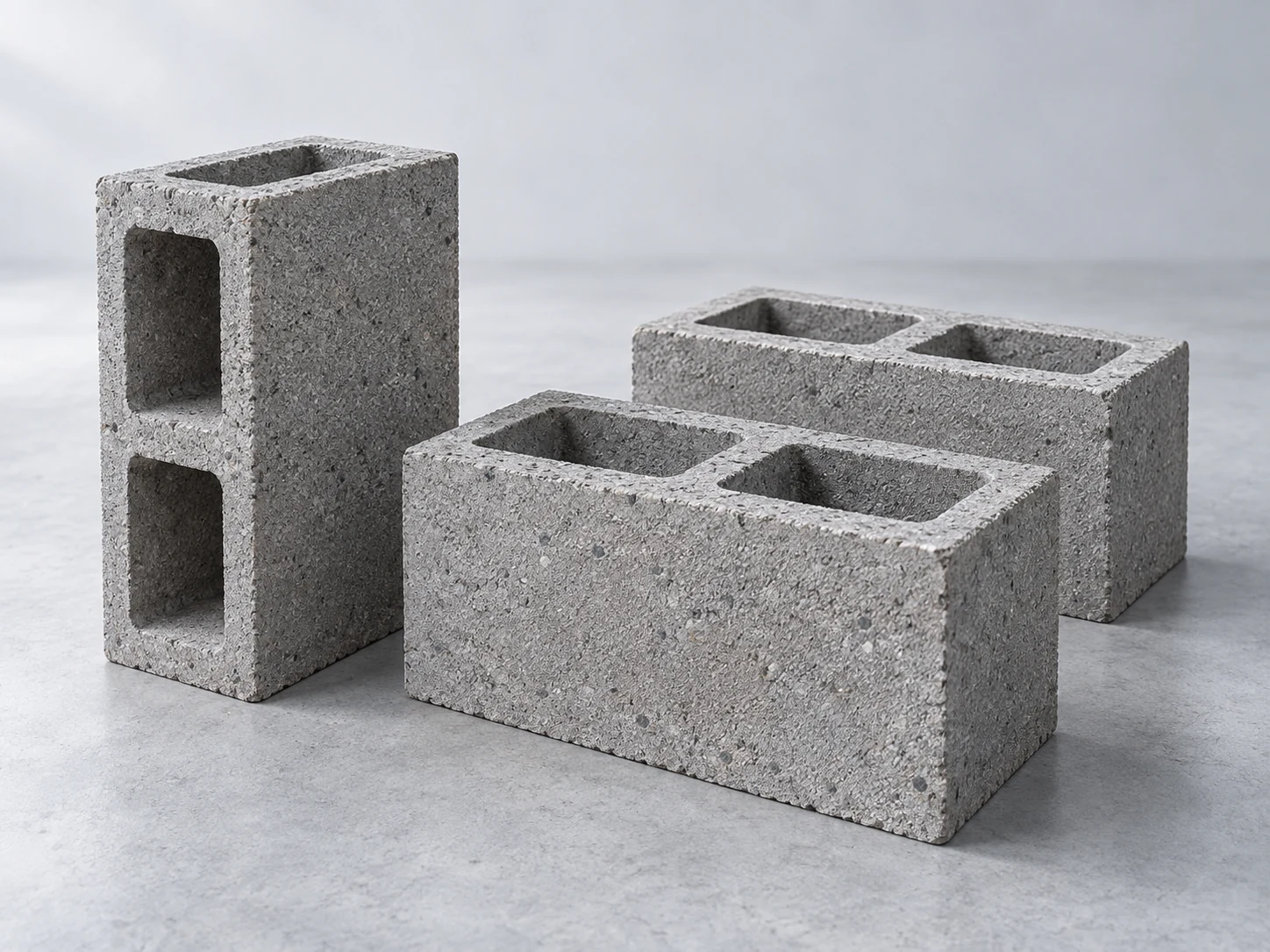

Hollow blocks
Concrete blocks with cavities, made with hollow-block mould configurations.
Block Factory: concrete blocks, bricks and paving products

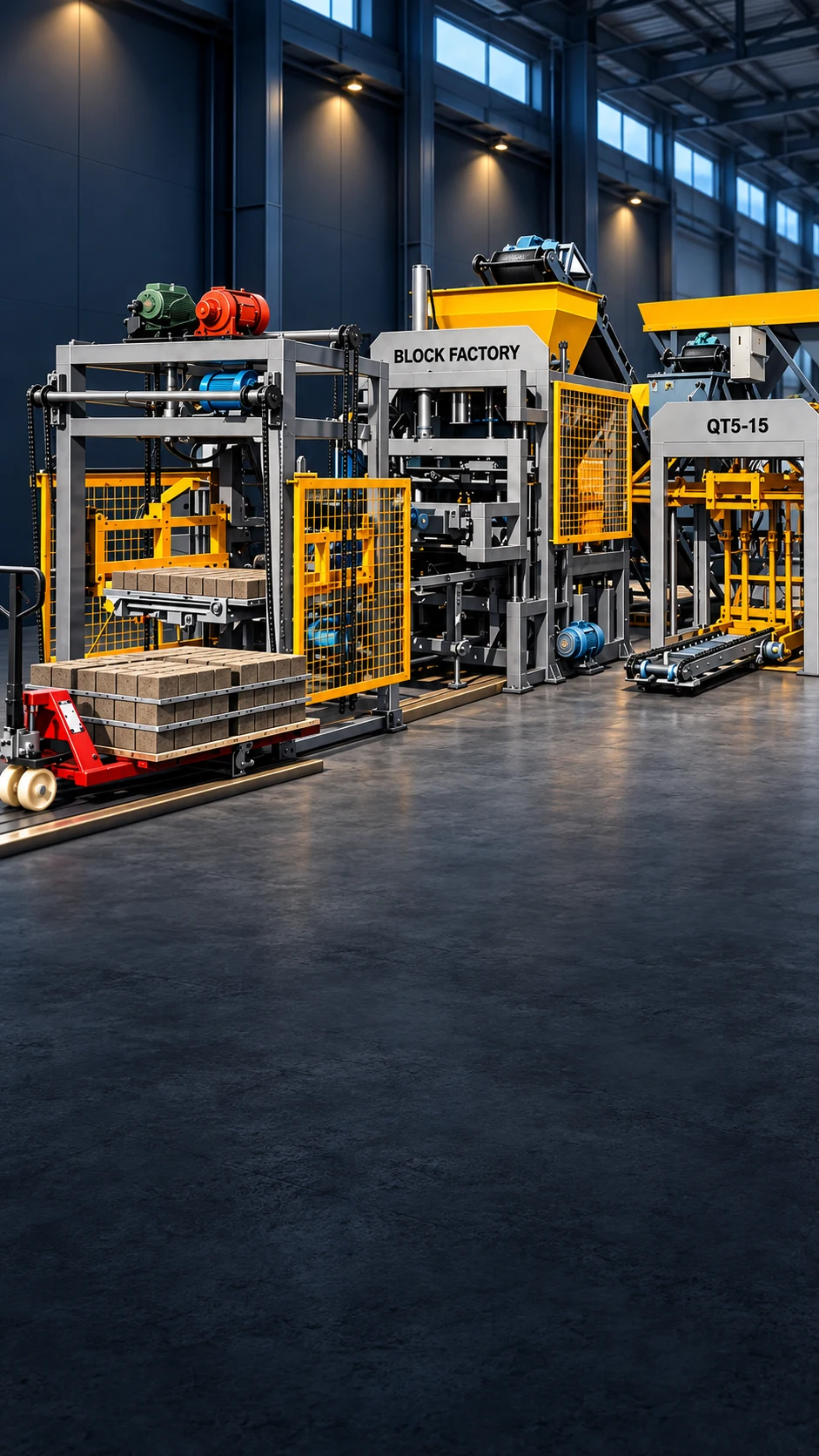

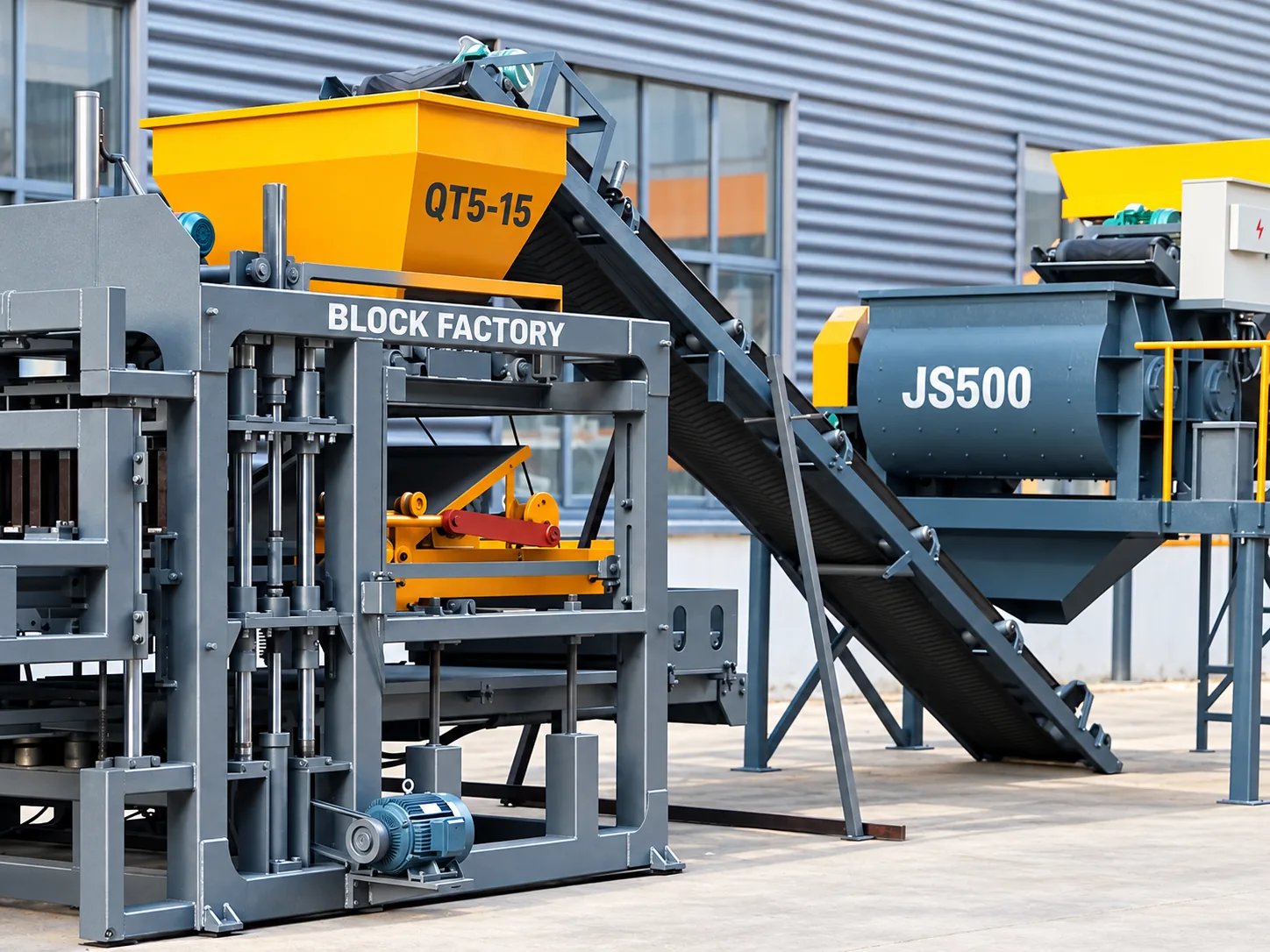

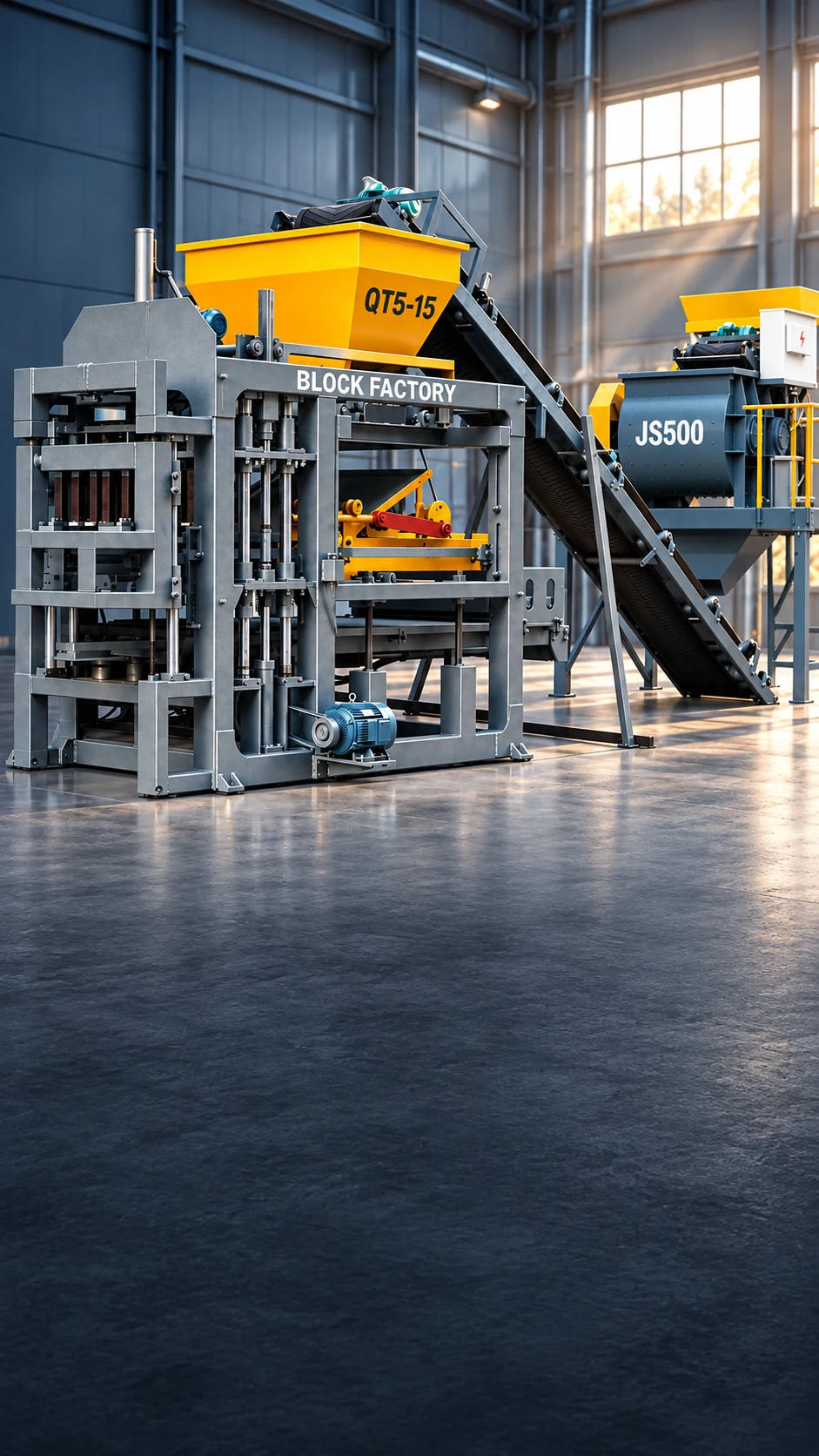

QT5-15 main machine and JS500 mixer.
Concrete products, made on one connected line.
Block Factory focuses on concrete hollow blocks, solid bricks and paving products.
Each product is formed on the QT5-15 automatic production line, where batching, mixing, moulding and pallet handling work together. The mould fitted to the machine defines the product, and dimensions are confirmed for every project.
Products
Hollow blocks, solid bricks and paving products
Changeable moulds let one line produce each product type. Dimensions depend on the moulds confirmed for your project.

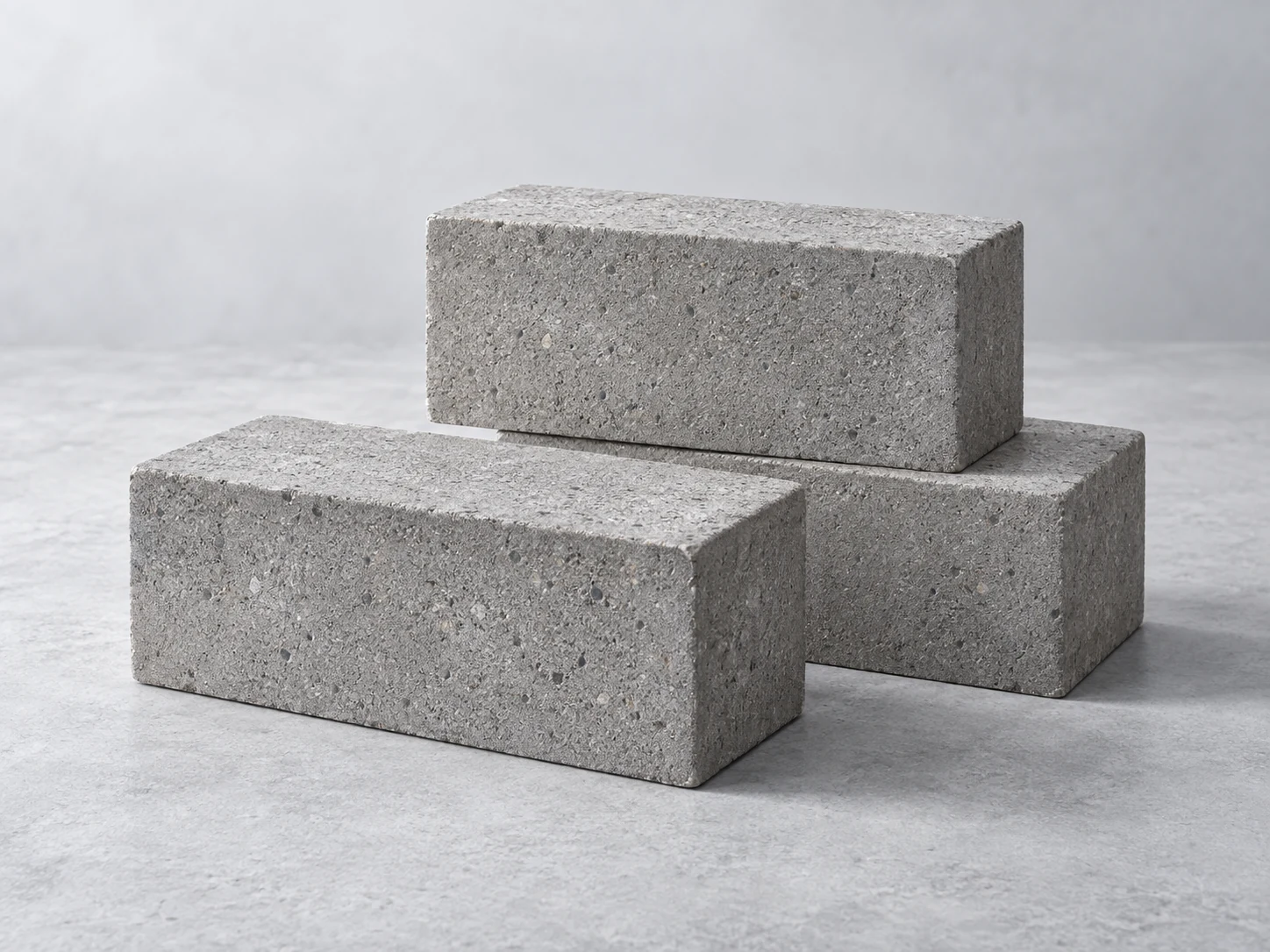

Solid bricks
Solid concrete bricks, made with compatible solid-brick moulds.

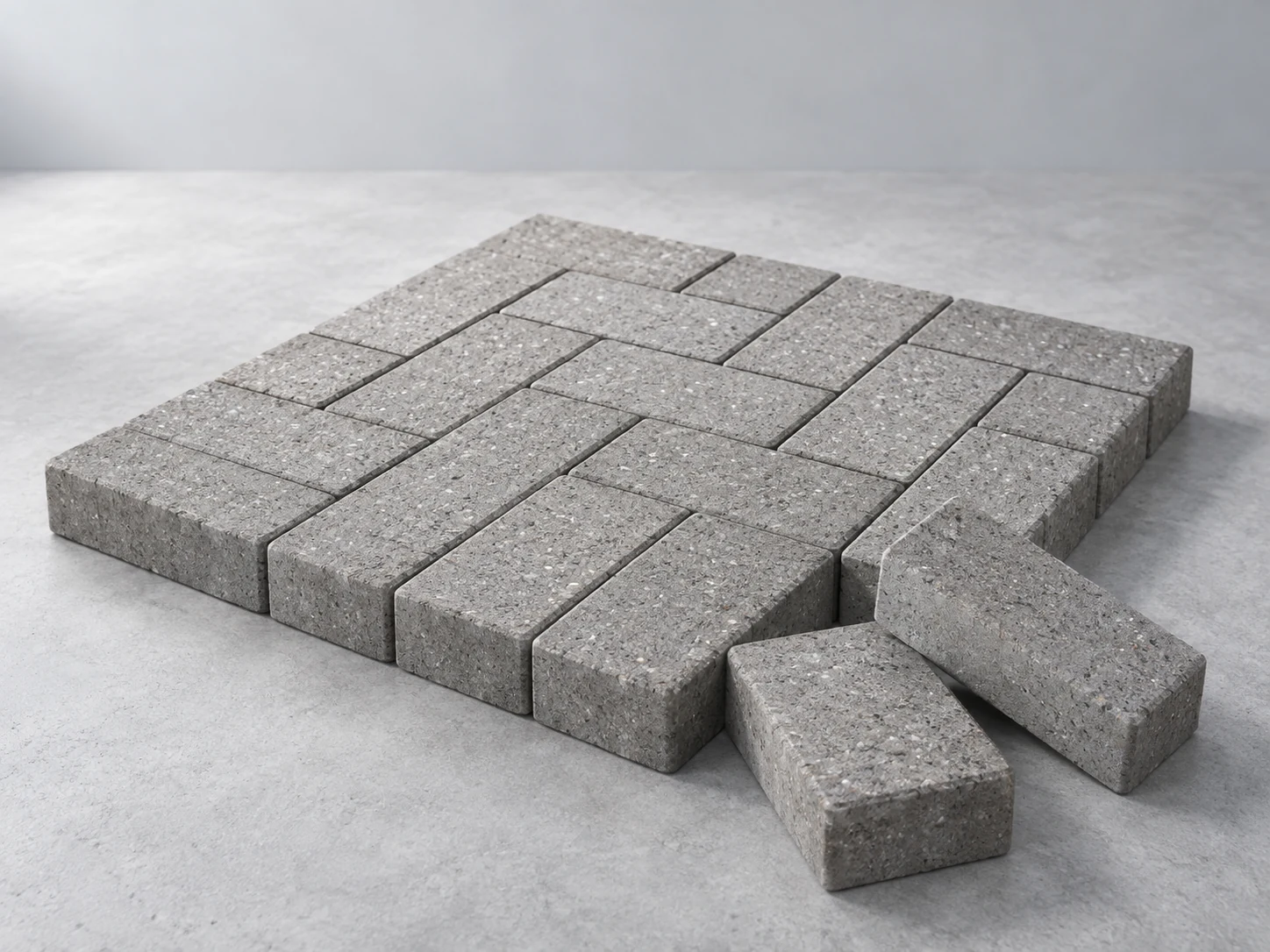

Paving products
Concrete paving products, made with compatible paving moulds.
Our Business
Construction Works
Cement & Products
MEP Services & HVAC
Infrastructure
Structural & Architectural Design
Steel Structure Works

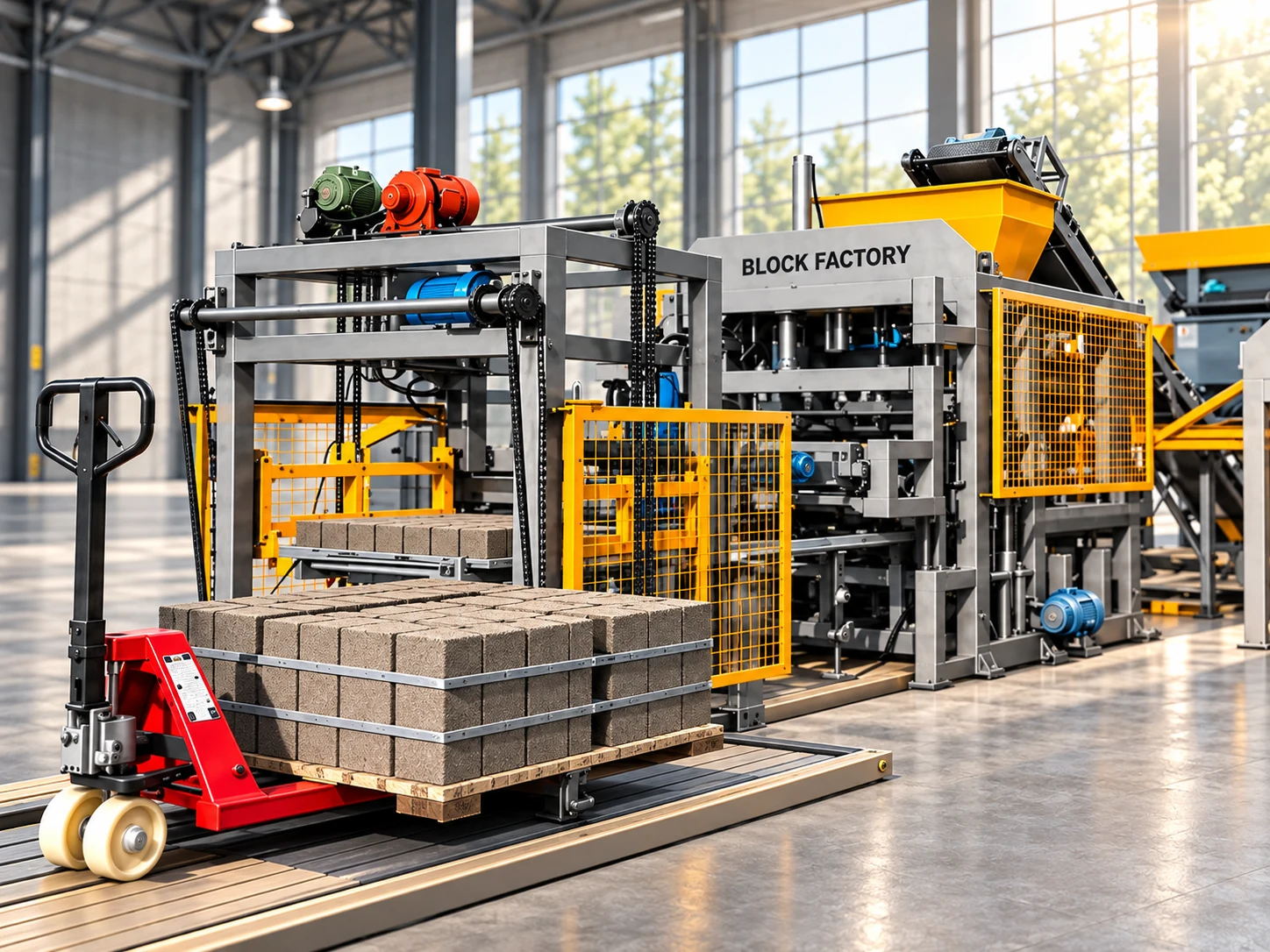

Output end of the line: stacker and loaded pallet.
Production
From batching to stacking

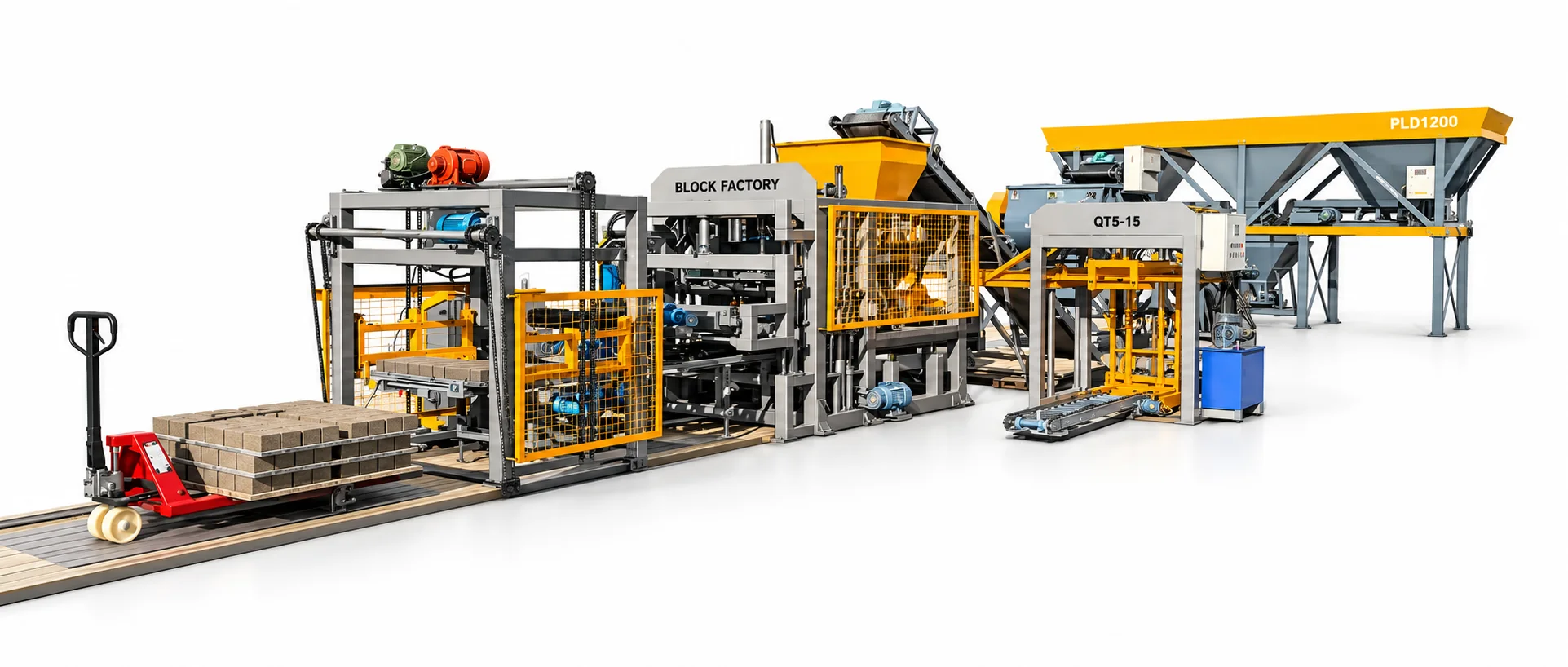

Six connected stages — batching, mixing, feeding, moulding, transfer and stacking — followed by curing.
Configuration, moulds, product dimensions and achievable output must be confirmed for your project before ordering. Line arrangement and supplied equipment depend on the confirmed order.
Batching
The PLD1200 three-bin batching station prepares aggregate for transfer.
Mixing
An 8 m conveyor feeds the batched material to the JS500 mixer.
Feeding
Mixed material travels by conveyor to the main machine hopper.
Moulding
The QT5-15 combines hydraulic mould movement with vibration.
Transfer
The pallet feeder and block conveyor move formed products out of the moulding area.
Stacking
The stacker handles loaded pallets before the products go to curing.
Brochure
QT5-15 product overview
The production line, control and product flexibility, and the technical overview from the installation and operation manual.
PDF · 4 pages · 6.6 MB · English
